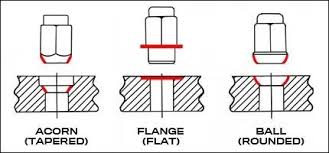

/ How To Measure 5 Lug Pattern : To find your bolt pattern, measure the distance as accurately as possible and then find the corresponding bolt pattern in the conversion table below.
How To Measure 5 Lug Pattern : To find your bolt pattern, measure the distance as accurately as possible and then find the corresponding bolt pattern in the conversion table below.
How To Measure 5 Lug Pattern : To find your bolt pattern, measure the distance as accurately as possible and then find the corresponding bolt pattern in the conversion table below.. How to measure 5 lug bolt pattern. You can estimate the measurement by using a straight line from the backside of one hole to the center of the third bolt hole. Do you have 5 lugs on your tires? Extend the ruler directly across from the bolt to the space across from the bolt, located in the center of two bolts or lugs, to determine the measurement. Choose any lug bolt and measure the distance between the back of one lug to the center of another that is directly across from it.

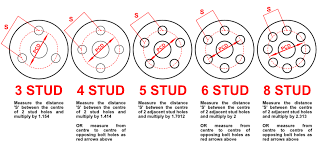

Choose any lug bolt and measure the distance between the back of one lug to the center of another that is directly across from it. For 5 lug wheels its only slightly more complicated then the 4, 6, or 8 lug measurement. Take a look at our diagram for an illustration of how it is measured. Now, measuring the 5 bolt rim is not that easy as 4 bolt rim. Measure 5 lug wheel bolt patterns from the outside edge to.
Tips And Tidbits How To Measure A Trailer Wheel Www Ordertrailerparts Com from cdn.shopify.com That should get you your bolt pattern measurement. This measurement is your bolt pattern diameter. For a 4 lug wheel, measure center to center of two holes directly across from each other. If there are 7 studs, multiply the measurement by 1.03. For example, a bolt pattern in metric, let's say 5x114.3, is equal to 5x4.5 in inches, because 114.3 divided with 25.4 = 4.5, easy, don't you agree? You can also measure from the center of one bolt hole to the center of the third hole using a multiplier of 1.05 to find your bolt circle. A wheel with a 5 bolt pattern that has a pitch circle diameter of 4 1. If the distance is 5 inches, the bolt pattern is 5 on 5 etc.
This measurement is your bolt pattern diameter.
A wheel with a 5 bolt pattern that has a pitch circle diameter of 4 1. If the distance is 4 1/2 inches, the bolt pattern is 5 on 4 1/2. Measure center to center of two holes directly across from each other. You can also measure from the center of one bolt hole to the center of the third hole using a multiplier of 1.05 to find your bolt circle. To determine the bolt pattern on a 5 lug wheel, measure from the center of a wheel stud to the outer edge of the stud furthest away from it. It is important to skip one bolt when measuring. 5 x 205 bolt pattern measurement and specifications. Do you have 5 lugs on your tires? First 50 people to use co. This short video makes it simple to measure yours. How to measure your trailer wheel bolt pattern if you're replacing your trailer wheel, you've no doubt realized you need to know something called the bolt pattern (also called the lug pattern or bolt circle). A wheel with 5 lugs won't have a symmetrical set of bolts. Measure 5 lug wheel bolt patterns from the outside edge to.
How to measure 5 lug bolt patterns. The diagram (upper, left) indicates the proper measuring. The accurate measurement is depicted here and can only be measured with a special tool called a bolt pattern gauge or by using a complex geometric equation. Measure center to center of two holes directly across from each other. This measurement is your bolt pattern diameter.
Wheel Bolt Pattern from static.summitracing.com Now, measuring the 5 bolt rim is not that easy as 4 bolt rim. If you need the 4, 6 or 9 lug page look here how to measure 4, 6 or 8 lug wheel bolt pattern 5x114.3 mm is also referred to as 5x4.5). The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. The 5 x 205 bolt pattern or pitch circle diameter (pcd) is made up of the stud count (5) and the bolt circle measurement (205), the notional circle determined by the center position of the studs. Extend the ruler directly across from the bolt to the space across from the bolt, located in the center of two bolts or lugs, to determine the measurement. The diagrams below indicate the proper measuring methods. Alternate 5 lug bolt pattern measurement

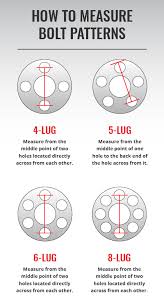

Take a look at our diagram for an illustration of how it is measured.
The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. Since there are 5 bolts equipped on the wheel, it can be a little bit confusing to some people how to measure precisely. The easiest way to estimate the 5 lug bolt pattern, is to measure from the back of a hole to the center of the second hole. First 50 people to use co. To find your bolt pattern, measure the distance as accurately as possible and then find the corresponding bolt pattern in the conversion table below. You need to measure from the center of one lug to the center of the lug nearest to it. A bolt circle of 5x114.3 mm would indicate a 5 lug pattern on a circle with a diameter of 114.3mm (or 4.5). How to measure 5 lug bolt patterns. Two of the most common trailer bolt patterns are 4 on 4 and 5 on 4.5. You can also measure from the center of one bolt hole to the center of the third hole using a multiplier of 1.05 to find your bolt circle. Measure center to center of two holes directly across from each other. Take a look at our diagram for an illustration of how it is measured. We offer five lug wheels to fit 5x4, 5x4.5, 5x4.75, 5x5, 5x5.5 and 5x205mm bolt patterns in a variety of authentic styles.
Measure a 4 lug trailer wheel from the. 5x114.3 mm is also referred to as 5x4.5). In the same way we may calculate the following bolt pattern in inches, 5x5, to metric, which will be 5 times 25.4 = 127 (bolt pattern = 5x127). A bolt circle of 5x114.3 mm would indicate a 5 lug pattern on a circle with a diameter of 114.3mm (or 4.5). Vernier caliper set on 25.4 mm which equals to 1 inch.
How To Measure The Bolt Pattern Of A Trailer Wheel Etrailer Com from www.etrailer.com For example, a bolt pattern in metric, let's say 5x114.3, is equal to 5x4.5 in inches, because 114.3 divided with 25.4 = 4.5, easy, don't you agree? Now, measuring the 5 bolt rim is not that easy as 4 bolt rim. Then, choose 1 of the 2 bolts on the opposite side. A common measurement for a 5 bolt pattern is 120 millimetres (4.7 in) from the top of 1 lug to the center of another. That should get you your bolt pattern measurement. If your trailer wheel hubs have 5 lug bolts, measuring is slightly different. Learn more about wheel dimensions. How to measure 5 lug bolt pattern.
Learn more about wheel dimensions.
The diagram (upper, left) indicates the proper measuring. You can estimate the measurement by using a straight line from the backside of one hole to the center of the third bolt hole. For example, a bolt pattern in metric, let's say 5x114.3, is equal to 5x4.5 in inches, because 114.3 divided with 25.4 = 4.5, easy, don't you agree? A wheel with 5 lugs won't have a symmetrical set of bolts. You need to measure from the center of one lug to the center of the lug nearest to it. Bolt circles are measured in both inches and millimeters, therefore you may hear a bolt pattern referred to as both (i.e. If your wheel has 5 bolts, or another odd number of bolts, measure from the very top of 1 lug nut to the center of the bolt that is directly across from it in order to find the diameter. Measure 5 lug wheel bolt patterns from the outside edge to center distance between two studs that are across the hub from each other. Choose any lug bolt and measure the distance between the back of one lug to the center of another that is directly across from it. This short video makes it simple to measure yours. Bolt patterns with an even number of lugs are measured from bolt center to bolt center while 5 lug bolt patterns are measured from the top of the upper lug to the center of the lower lug. Take a look at our diagram for an illustration of how it is measured. Measure a 4 lug trailer wheel from the.
